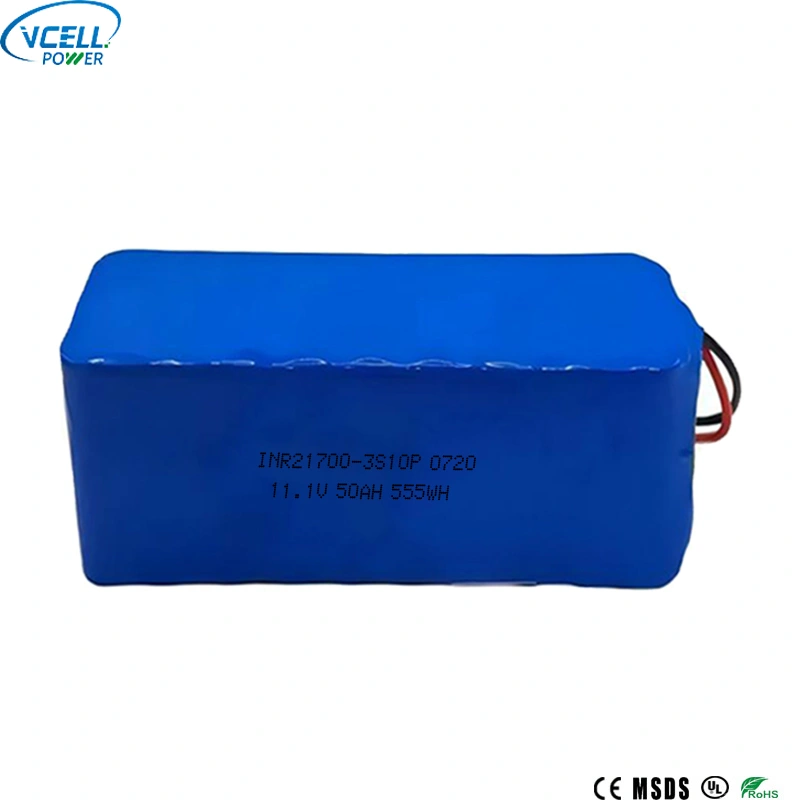

Lithium Ion Battery technology has become a major platform for portable electronics, electric mobility, industrial equipment, energy storage, robotics, and many other electrically powered systems. Its appeal comes from the combination of relatively high specific energy, rechargeable operation, flexible pack architecture, and compatibility with sophisticated battery-management systems. However, selecting a suitable battery is not simply a matter of choosing the highest capacity available. The complete design involves cell chemistry, nominal voltage, capacity, discharge rate, charge conditions, thermal behavior, cell arrangement, protection architecture, enclosure dimensions, communication requirements, connector design, environmental exposure, and transportation considerations. Different chemistries can produce very different behavior even though they belong to the same broad lithium-based family. Cylindrical cells, pouch cells, and other formats also create different mechanical and thermal design possibilities. A well-engineered battery pack therefore begins with the equipment load and operating environment, then works backward toward cell selection, electrical architecture, protection, thermal management, testing, and final integration.
Table of Contents
Click any topic to jump directly to the section.
- 1. Why Has Rechargeable Lithium Technology Become So Widely Used?
- 2. How Does a Rechargeable Lithium Cell Store and Release Energy?
- 3. Which Cell Chemistries Should Engineers Compare?
- 4. How Do Voltage, Capacity, and Energy Relate to One Another?
- 5. Why Do Discharge Rate and C-Rate Matter?
- 6. How Does a Battery Management System Protect the Pack?
- 7. How Do Cell Formats Affect Pack Design?
- 8. How Should Thermal Management Be Designed?
- 9. What Should Be Considered When Charging a Lithium Battery Pack?
- 10. How Do Battery Packs Support Different Applications?
- 11. What Safety and Transportation Factors Matter?
- 12. What Common Battery Selection Mistakes Should Be Avoided?
- 13. What Should a Professional Battery Specification Include?
- 14. Frequently Asked Questions
Why Has Rechargeable Lithium Technology Become So Widely Used?
Rechargeable lithium-based batteries are attractive because they can store a meaningful amount of electrical energy in a comparatively compact package while supporting repeated charge and discharge cycles. Their flexible electrical architecture also allows manufacturers to build packs for very different voltage and capacity requirements.
The technology is now used across a broad range of equipment. Portable electronics need compact sources of power. Electric mobility platforms need batteries that can deliver both energy and power within limited physical space. Industrial equipment may require predictable discharge behavior over extended operating periods. Energy storage systems may prioritize cycle life, thermal stability, monitoring, and controlled charging.
These applications share a common principle: the battery must match the electrical and mechanical requirements of the equipment.
That sounds straightforward, but real-world equipment rarely operates at a single constant load. A motor may draw a high current during startup and a much lower current once it reaches operating speed. A portable device may alternate between sleep, standby, communication, and peak-performance modes. A mobile robot may accelerate, stop, climb, and operate auxiliary motors throughout the same duty cycle.
The battery therefore needs to respond to changing current demand while remaining within its designed electrical and thermal limits.
Well-designed lithium cells can provide substantial energy relative to their mass and volume, supporting compact equipment architectures.
Cells can be arranged in series and parallel combinations to create different voltage and capacity platforms.
Appropriate rechargeable chemistries can support repeated charge and discharge cycles under controlled operating conditions.
Battery-management systems can monitor electrical and thermal conditions and provide multiple layers of protection.
Why pack design matters as much as cell selection
A cell is only the basic building block. Once multiple cells are combined, the system introduces additional engineering requirements. Cells need to remain balanced. Current paths must be designed correctly. Electrical connections need appropriate insulation and mechanical support. The enclosure needs to protect the cells without preventing heat from leaving the pack.
For many industrial applications, the battery pack also needs an external connector, charging interface, fuse, communication interface, mounting structure, or service disconnect. These elements can influence the final size and performance of the pack.
Why application requirements come first
It is common to start battery selection from a preferred cell model. A more reliable process starts from the equipment.
The engineer should first identify operating voltage, average load, peak load, operating duration, charging conditions, ambient temperature, physical space, vibration, and required communication or protection functions. Only then should the cell chemistry and pack structure be selected.
How Does a Rechargeable Lithium Cell Store and Release Energy?
A rechargeable lithium cell stores energy through reversible electrochemical reactions. During charging, electrical energy drives lithium ions from one electrode structure toward another. During discharge, the ions move back through the electrolyte while electrons travel through the external circuit to power the connected equipment.
The basic cell contains several critical elements, including a positive electrode, negative electrode, separator, electrolyte, current collectors, and protective packaging.
Positive electrode
The positive electrode material strongly influences the cell's operating voltage, energy characteristics, thermal behavior, and other performance properties. Different cathode chemistries can therefore produce very different cell behavior.
Negative electrode
The negative electrode commonly uses a carbon-based material in many rechargeable lithium systems. It provides a host structure for lithium ions during charge and discharge.
Separator
The separator electrically separates the positive and negative electrodes while allowing ionic transport through the electrolyte. Its integrity is extremely important because direct electrical contact between the electrodes can cause a severe internal fault.
Electrolyte
The electrolyte provides an ionic transport path between the electrodes. Its formulation and stability affect the cell's electrical and thermal behavior.
Current collectors
Current collectors transfer electrons between the active electrode material and the external electrical terminals. Their construction affects resistance and thermal performance.
Cell housing
The enclosure provides mechanical protection and controls how the internal materials interact with the external environment. Cylindrical, prismatic, and pouch cells use different housing approaches.
| Cell Element | Main Function | Design Importance |
|---|---|---|
| Positive electrode | Participates in lithium-ion storage and release | Strong influence on voltage, energy, and stability |
| Negative electrode | Hosts lithium during cycling | Influences capacity, rate capability, and cycle behavior |
| Separator | Provides electrical separation | Critical to internal safety |
| Electrolyte | Allows ionic transport | Influences conductivity and electrochemical stability |
| Current collectors | Carry electron current | Influence resistance and heat generation |
| Housing | Provides physical containment | Influences mechanical protection and thermal management |
Charge and discharge are reversible processes, not identical mirror images
Charging and discharging involve different electrical conditions. Charging is controlled by the charger and battery-management system, while discharge is driven by the connected equipment.
This distinction is important because a battery can be capable of delivering a certain current without necessarily being suitable for charging at the same current.
Why cell temperature changes during operation
Cells have internal resistance. Whenever current flows, some energy is converted into heat. The amount of heat depends on current, resistance, operating temperature, cell condition, and other electrochemical factors.
As current increases, heat generation can increase rapidly. This is one reason high-rate battery applications require careful thermal design.
The electrochemical cell is therefore only the beginning. The final pack must control voltage, current, temperature, mechanical stress, and charge conditions so that the cell remains within its specified operating window.
Which Cell Chemistries Should Engineers Compare?
“Lithium battery” is not a single chemistry. Several cathode systems exist, and they can differ substantially in energy density, thermal stability, voltage characteristics, power capability, cycle behavior, and recommended applications.
Lithium iron phosphate
Lithium iron phosphate, commonly abbreviated LFP, is known for strong thermal stability and long cycle performance under appropriate operating conditions. Its nominal cell voltage is lower than some nickel-rich lithium chemistries, so the pack requires a different series configuration to reach the same system voltage.
LFP is often considered for stationary storage, backup systems, solar energy systems, and applications where cycle life and thermal characteristics are particularly important.
NMC chemistry
Nickel manganese cobalt oxide systems are commonly described as NMC. These cells can provide a higher energy density than many LFP designs, making them attractive for weight-sensitive applications.
The trade-off is that the system requires careful thermal and charging management, and the exact characteristics depend on the cell formulation.
LCO chemistry
Lithium cobalt oxide has been used extensively in consumer electronics. It can provide high energy density, but its thermal and cycle characteristics make careful battery-management and application control important.
NCA chemistry
Nickel cobalt aluminum systems are another high-energy lithium chemistry. They have been used in applications that require high energy density, but pack-level thermal and safety design remain essential.
Why chemistry should be selected from the application
The correct chemistry depends on the equipment duty rather than on a universal ranking.
Often chosen where thermal stability, cycle life, and long-duration operation are important.
Often selected where energy density and balanced power performance are important.
Commonly associated with compact consumer-electronics applications requiring high energy density.
Used in selected high-energy applications where careful electrical and thermal control is required.
| Chemistry | Typical Strength | Typical Design Focus |
|---|---|---|
| LFP | Thermal stability and cycle capability | Pack weight, voltage platform, long-duration operation |
| NMC | Energy density and balanced performance | Thermal management and protection |
| LCO | High energy density | Thermal management and controlled charging |
| NCA | High energy capability | Thermal control, protection, and operating limits |
Why chemistry should not be selected from marketing labels
Two cells described with the same chemistry can still behave differently because of electrode formulation, manufacturing process, particle structure, electrolyte system, separator design, cell size, and quality control.
Therefore, professional selection should examine actual technical data instead of relying solely on a chemistry label.
Cell matching is equally important
Cells connected in the same pack should have closely matched characteristics. Significant differences in capacity, internal resistance, or state of charge can create imbalance during operation.
This is especially important in series-connected packs, where the same current flows through every cell in the string.
How Do Voltage, Capacity, and Energy Relate to One Another?
Battery specifications often contain several numbers that are easy to confuse. Voltage, capacity, power, and energy describe different characteristics.
Voltage
Voltage represents the electrical potential of the battery. In a battery pack, series-connected cells add their voltages.
For example, a series string of ten cells with a nominal cell voltage of approximately 3.6 V would have a nominal pack voltage of approximately 36 V.
Capacity
Capacity is generally expressed in ampere-hours, or Ah. It indicates how much charge the battery can deliver under specified test conditions.
Capacity should not be interpreted as a fixed amount independent of current, temperature, discharge cutoff, and testing method.
Energy
Stored electrical energy is commonly expressed in watt-hours. A simplified relationship is:
Energy (Wh) ≈ Voltage (V) × Capacity (Ah)
This relationship is useful for early-stage system estimation. Actual usable energy will depend on discharge conditions, conversion losses, operating limits, temperature, and the control strategy.
Power
Power is the rate at which energy is delivered. A battery may have substantial stored energy while still being unsuitable for an application that requires a very high instantaneous current.
This is why capacity and power capability should always be evaluated separately.
| Parameter | Unit | What It Tells the Engineer |
|---|---|---|
| Nominal voltage | V | Electrical voltage platform |
| Capacity | Ah | Charge storage capability under defined conditions |
| Energy | Wh | Approximate stored electrical energy |
| Power | W or kW | Rate of electrical energy delivery |
| Current | A | Electrical load or charging flow |
Series versus parallel connections
Series connections primarily increase voltage. Parallel connections primarily increase capacity and current capability.
A 10S3P pack, for example, contains ten cells or cell groups in series and three parallel paths. The exact voltage and capacity depend on the individual cell ratings.
Why pack calculations need operating margins
The theoretical energy calculated from nominal voltage and nominal capacity is not always available to the equipment. Battery-management limits may prevent full discharge or full charge to protect the cells.
Temperature also changes practical capacity and power behavior. Cold conditions can increase internal resistance and reduce available power, while high temperatures can accelerate degradation.
Why voltage platform matters to the equipment
Motors, inverters, control boards, chargers, relays, and other components are designed around specific voltage ranges.
A battery with higher capacity is not automatically compatible if the system voltage is wrong. Conversely, a battery with the correct voltage can still be unsuitable if its current capability is inadequate.
Why Do Discharge Rate and C-Rate Matter?
A battery's capacity does not fully describe how quickly it can release energy. Discharge rate is critical for motors, power tools, drones, robotics, traction equipment, and other systems with significant peak-current demand.
Understanding C-rate
C-rate expresses current relative to the battery's capacity. A 1C discharge means that the current is numerically equal to the rated capacity in ampere-hours.
For a 20 Ah battery, a 1C discharge corresponds to 20 A. A 2C discharge corresponds to 40 A, subject to the battery's actual specifications.
Continuous versus peak current
Some applications draw a high current only for a few seconds or minutes, while others demand elevated current continuously.
A battery that can support a brief peak may not be suitable for continuous high-rate operation because sustained current creates more heat and places greater electrochemical stress on the cells.
Internal resistance
Internal resistance causes voltage drop and heat generation when current flows. Higher current magnifies the effect.
The battery may therefore exhibit lower terminal voltage under heavy load than under light load, even though the nominal voltage remains unchanged.
Power tools and mobile equipment
Applications such as power tools, scooters, robots, and drones can require short bursts of high current. In these cases, high-rate cells, low-resistance connections, adequate thermal pathways, and an appropriately rated BMS are important.
| Load Profile | Typical Requirement | Important Battery Characteristic |
|---|---|---|
| Low-power continuous | Stable current over long periods | Capacity and low self-discharge |
| Moderate variable load | Changing current demand | Balanced energy and power capability |
| High-power intermittent | Short bursts of high current | High-rate cells and thermal response |
| High-power continuous | Sustained elevated current | Continuous discharge rating and strong thermal management |
Why connector and wiring design also matter
A high-current battery pack needs more than high-rate cells. Connectors, nickel strips, busbars, wires, fuses, relays, and switches all have resistance.
If a small component becomes a bottleneck, the battery may not deliver the expected power even when the cells themselves are capable of doing so.
Discharge cutoff
Battery-management electronics can prevent the pack voltage from falling below the specified limit. This protects the cells from excessive discharge.
The cutoff point should be defined according to the chemistry and cell manufacturer's requirements rather than assumed to be universal.
How Does a Battery Management System Protect the Pack?
A battery-management system, commonly called a BMS, monitors and controls important electrical and thermal conditions within the battery pack.
The BMS is particularly important in multi-cell packs because individual cells do not always behave identically. Even small differences can become larger over repeated charging and discharging cycles.
Overcharge protection
The BMS can monitor cell or pack voltage and stop or reduce charging when a defined upper limit is reached.
Over-discharge protection
The BMS can disconnect the load when the battery reaches a defined lower-voltage threshold.
Overcurrent protection
If current exceeds the defined safe operating range, the BMS can trigger a protective response. This can help protect cells, wiring, connectors, and switching components.
Short-circuit protection
A short circuit can create a very large current in a low-impedance path. Protection circuitry and appropriate fusing are therefore important parts of the pack architecture.
Temperature monitoring
Temperature sensors can be positioned at selected points within the pack. The BMS can use temperature information to restrict charging, discharging, or both when temperatures move outside the permitted range.
Cell balancing
Cells connected in series can gradually develop differences in state of charge. Balancing helps reduce these differences so that the series string operates more uniformly.
Tracks individual cells or groups and detects conditions approaching defined operating limits.
Measures charge and discharge current and supports overcurrent protection.
Helps control operation when cell or pack temperature moves beyond the permitted range.
Helps maintain a more consistent state of charge among series-connected cells.
| BMS Function | Purpose | Typical Protective Action |
|---|---|---|
| Overcharge protection | Prevent excessive cell voltage | Stop or limit charging |
| Over-discharge protection | Prevent excessive cell depletion | Disconnect load |
| Overcurrent protection | Prevent excessive current | Disconnect or limit current |
| Short-circuit protection | Respond to abnormal current paths | Rapid electrical isolation |
| Temperature protection | Prevent operation outside thermal limits | Restrict charging or discharging |
| Balancing | Reduce voltage differences between series cells | Controlled balancing current |
Smart BMS functions
Advanced BMS platforms can provide communication through interfaces such as CAN, RS485, UART, Bluetooth, or other protocols, depending on the design.
Communication can provide information about state of charge, battery voltage, current, temperature, alarms, operating status, and diagnostic data.
Why BMS selection must match the pack
A BMS must be compatible with the number of cells in series, cell chemistry, charge voltage, discharge current, temperature sensors, and connector architecture.
A BMS designed for one voltage platform or chemistry should not automatically be reused for another pack.
How Do Cell Formats Affect Pack Design?
Cell format determines much more than physical appearance. It influences how cells are arranged, cooled, connected, enclosed, serviced, and protected.
Cylindrical cells
Cylindrical cells such as 18650, 21700, and 26650 formats are widely used in rechargeable battery packs. Their standardized cylindrical dimensions can simplify automated assembly and make it easier to create modular pack structures.
However, cylindrical cells create spaces between adjacent cells. Thermal pathways and mechanical fixation therefore need to be designed carefully.
Pouch cells
Pouch cells use flexible laminated packaging rather than a rigid cylindrical or metal can. Their shape can provide strong packaging flexibility, which is useful in equipment with unusual internal geometry.
Mechanical compression and protection against swelling or puncture need to be considered in pack design.
Prismatic cells
Prismatic cells use a rigid rectangular enclosure. Their geometry can make better use of rectangular spaces, which can simplify certain large-pack layouts.
Why cell format affects cooling
Heat must travel from the electrochemical reaction zone to the surrounding environment. The cell geometry determines the path available for that heat to leave.
A tightly packed cylindrical arrangement can have very different thermal behavior from a flat pouch configuration.
| Cell Format | Main Structural Character | Typical Design Focus |
|---|---|---|
| Cylindrical | Rigid round housing | Cell spacing, interconnection, automated assembly, cooling |
| Pouch | Flexible laminated enclosure | Mechanical support, compression, swelling management |
| Prismatic | Rigid rectangular housing | Pack density, thermal path, structural integration |
Cell arrangement
The series-parallel configuration defines the final battery platform. A 13S7P configuration, for example, indicates thirteen series groups and seven parallel cells within each group.
Such an architecture can be selected to reach a target voltage and capacity while remaining within the current capability of each individual cell.
Welded versus mechanical connections
Cells can be interconnected through welded tabs, busbars, flexible connectors, or other methods depending on the pack design.
Connection resistance needs to remain low and mechanically stable. Poor connections can produce localized heating and voltage loss.
Pack enclosure
The enclosure must protect the cells from impact, moisture, dust, vibration, and accidental contact while providing sufficient ventilation or heat-transfer capability.
The enclosure should also allow appropriate access to connectors, service components, and communication interfaces.
Cell format is therefore a system-level design decision. The smallest physical arrangement is not always the best arrangement if it creates thermal, mechanical, assembly, or service problems.
How Should Thermal Management Be Designed?
Temperature has a major influence on lithium battery performance, safety, charging behavior, and long-term cell condition. Thermal management should therefore be considered during pack design rather than added after the electrical architecture is complete.
Heat generation
Current flowing through internal resistance generates heat. Electronic components such as MOSFETs, contactors, resistors, and DC-DC converters may also produce heat.
When several components operate inside a small enclosure, their combined heat output can raise the internal pack temperature significantly.
Temperature gradients
Not every cell in a pack experiences the same thermal environment. Cells near the center of a dense pack may retain more heat than cells near an outer wall.
Uneven temperature can lead to different electrical behavior among cells, which can increase imbalance over time.
Passive thermal management
Passive strategies can include thermal pads, conductive plates, heat spreaders, controlled cell spacing, and thermally conductive enclosures.
These solutions can work effectively when heat generation is moderate and the surrounding environment provides sufficient heat rejection.
Active thermal management
High-power systems may require forced air, liquid cooling, or another active thermal-management strategy.
The appropriate method depends on heat generation, available space, environmental conditions, maintenance requirements, and system complexity.
| Thermal Strategy | Typical Use | Key Consideration |
|---|---|---|
| Cell spacing | Moderate-power packs | Balance airflow with pack size |
| Thermal pad | Pack-to-housing heat transfer | Material conductivity and compression |
| Heat spreader | Distribute localized heat | Contact area and thermal resistance |
| Forced air | Higher-power systems | Airflow path, dust, noise, maintenance |
| Liquid cooling | High-power applications | Complexity, sealing, pump, service, leakage control |
High-temperature operation
Elevated temperature can accelerate aging processes within lithium cells. A pack that repeatedly operates at high temperatures may experience faster capacity loss or changes in internal resistance.
Low-temperature operation
Cold temperatures can increase internal resistance and reduce available power. Charging at very low temperature can also be problematic for certain chemistries and conditions.
Battery-management logic can therefore restrict charging when temperature falls outside the acceptable range.
Thermal sensor placement
Temperature sensors should be positioned where they provide meaningful information about the pack. Measuring only the enclosure wall may not accurately represent the hottest cell group.
High-current interconnections and power electronics may also deserve separate temperature monitoring.
What Should Be Considered When Charging a Lithium Battery Pack?
Charging is a controlled electrochemical process and should always be matched to the cell chemistry, pack voltage, BMS architecture, and charger specification.
CC/CV charging
Many rechargeable lithium systems use a constant-current and constant-voltage charging method. The charger initially supplies controlled current. Once the target voltage is reached, the charger holds the voltage while the current gradually decreases.
The exact charging voltage and current depend on the cell chemistry and pack design.
Charge voltage
The maximum charge voltage is chemistry-specific. Applying an incorrect voltage can damage the cells or create a hazardous operating condition.
Charge current
Charge current should be limited to the cell or pack's specified charging capability. High charging current can increase heat generation and electrochemical stress.
Charger and battery compatibility
The charger should be designed specifically for the battery's voltage platform and chemistry. A charger intended for one battery type should not be assumed to be suitable for another simply because the connector is physically similar.
| Charging Factor | Why It Matters | What Should Be Matched |
|---|---|---|
| Battery chemistry | Determines charging limits | Charger charging profile |
| Pack voltage | Defines target charge voltage | Charger output voltage |
| Charge current | Influences heat and cell stress | Battery charge-current limit |
| BMS | Provides monitoring and protection | BMS voltage, current, and temperature limits |
| Temperature | Influences charging safety | Allowed charging temperature range |
Charging at low temperature
Some lithium chemistries should not be charged below a defined temperature threshold. The BMS may therefore prevent charging until the cells return to an acceptable temperature.
Charging enclosure design
A battery can generate heat during charging, especially at higher current. The charger, pack, cables, and connectors should be arranged so that heat does not accumulate unnecessarily.
Why charger replacement matters
When replacing another battery chemistry with a lithium pack, the original charger may not be compatible. Different chemistries have different charging curves and voltage requirements.
The charger should therefore be treated as part of the battery system rather than as an unrelated accessory.
How Do Battery Packs Support Different Applications?
Different equipment demands different battery characteristics. The same basic lithium technology can support very different products because cells and packs can be configured for different voltage, capacity, power, and mechanical requirements.
Compact devices often prioritize energy density, low package volume, stable output, and integration with sophisticated power-management electronics.
Portable tools can require short bursts of high current, making power capability, low resistance, thermal control, and durable connectors important.
Scooters, electric bicycles, golf carts, and light-duty vehicles require a balance among voltage, capacity, current capability, weight, and vibration resistance.
Robots, AGVs, floor-care machines, backup systems, and portable instruments may require stable operation across repeated duty cycles.
Stationary storage systems often place greater emphasis on cycle performance, thermal stability, monitoring, enclosure design, and controlled charging.
Monitoring equipment, portable systems, and autonomous devices may require custom enclosures, connectors, protection, and temperature management.
Portable electronics
Small electronics generally place a strong emphasis on package size and energy density. The pack can be thin, curved, or highly customized to fit the product enclosure.
Because the device may spend long periods in standby and then suddenly require peak processing power, low self-discharge and stable voltage behavior can also be important.
Electric scooters and light mobility
Mobility applications often use voltage platforms such as 24 V, 36 V, 48 V, 60 V, or 72 V depending on the system architecture.
Peak motor current can be substantially higher than average current. The pack must therefore support acceleration and hill-climbing demands without excessive voltage drop.
AGVs and mobile robots
Automated guided vehicles and service robots may operate repeatedly during a working day. Their battery specifications need to reflect movement cycles, motor loads, charging opportunities, payload, and environmental conditions.
Communication between the battery and robot controller can also be valuable for state-of-charge reporting and system diagnostics.
Medical and industrial equipment
Portable medical and industrial devices may place strong emphasis on predictable voltage output, low self-discharge, reliability, and enclosure integration.
The battery should also be designed around the equipment's charging procedure and operating environment.
Energy storage systems
Stationary storage applications may prioritize chemistry stability, cycle capability, thermal management, monitoring, and fault protection over minimum pack weight.
LFP chemistry is frequently considered for these applications because its characteristics can align well with long-cycle stationary operation.
Custom battery projects
Custom projects can require unusual voltage platforms, connector positions, communication protocols, compact enclosures, or specialized mounting arrangements.
The engineering process should begin with the equipment drawing and electrical load profile. This helps avoid selecting a cell configuration that cannot fit the final enclosure or meet the power requirement.
| Application | Primary Requirement | Typical Engineering Focus |
|---|---|---|
| Consumer electronics | Compact energy storage | Package size, energy density, protection |
| Power tools | High short-duration power | High-rate cells, BMS, thermal response |
| Light electric mobility | Energy plus peak motor power | Voltage platform, capacity, current, vibration |
| AGV or robot | Repeated duty cycles | Cycle life, BMS communication, thermal management |
| Energy storage | Long-duration cycling | Thermal stability, cycle performance, monitoring |
| Custom equipment | Application-specific integration | Dimensions, connectors, control, enclosure |
What Safety and Transportation Factors Matter?
Battery safety is determined by the interaction between cell chemistry, manufacturing quality, mechanical design, electrical protection, charging control, thermal management, and operating conditions.
Physical protection
Cells should be protected against crushing, puncture, excessive vibration, and accidental contact with conductive objects.
The enclosure and internal supports should hold the cells securely while avoiding unnecessary mechanical stress.
Electrical protection
Fuses, circuit breakers, MOSFET protection stages, contactors, and BMS logic can all play roles in preventing or limiting abnormal current conditions.
The protective architecture should be designed around the pack's maximum current and fault scenarios.
Thermal protection
Temperature sensors and protective logic help prevent operation outside acceptable limits. Heat should also have a predictable path out of the pack.
Insulation
Series-connected battery packs can reach relatively high voltages. Electrical insulation between conductive parts, cell groups, busbars, and enclosure surfaces is therefore essential.
Transportation considerations
Lithium cells and battery packs are regulated for transportation because of their stored electrochemical energy and potential hazard under certain conditions.
International transport can require documents such as UN38.3 test documentation, safety data information, transport assessments, appropriate packaging, labeling, and mode-specific shipping procedures.
Requirements can differ according to battery type, watt-hour rating, state of charge, packaging arrangement, and transport mode.
| Safety Area | Primary Concern | Design Approach |
|---|---|---|
| Mechanical | Crushing, impact, vibration | Secure housing and cell supports |
| Electrical | Short circuit and overcurrent | Fuse, BMS, switching, insulation |
| Thermal | Excessive temperature | Sensor monitoring and heat dissipation |
| Charging | Incorrect voltage or temperature | Compatible charger and charging controls |
| Transport | Handling and regulatory compliance | Testing, packaging, labeling, documentation |
Why certification should be linked to the actual product
Certification and transportation documents are useful only when they correspond to the actual cell or pack configuration being supplied.
A document issued for one battery model should not automatically be assumed to cover a substantially different construction.
Why assembly quality matters
Battery safety is not determined only by the cell chemistry. Welding quality, connector routing, insulation materials, BMS assembly, temperature-sensor placement, fuse installation, and enclosure construction all influence the finished product.
What Common Battery Selection Mistakes Should Be Avoided?
The most common battery problems do not necessarily come from defective cells. Many begin with incomplete specifications or mismatched components.
- Choosing by capacity only: A higher Ah rating does not guarantee sufficient discharge capability.
- Ignoring system voltage: The battery voltage must match the equipment's electrical architecture.
- Ignoring peak current: Motor startup and acceleration can demand much more current than average operation.
- Using the wrong chemistry: Different chemistries have different voltage, thermal, charging, and cycle characteristics.
- Using an unsuitable charger: Charging profiles must match the battery chemistry and pack voltage.
- Underestimating thermal load: High-current packs need a clear path for heat dissipation.
- Ignoring the BMS: Protection limits need to match the exact series-parallel cell configuration.
- Ignoring dimensions: A battery that meets electrical requirements may still be impossible to install.
- Ignoring connectors: Connector current rating and mechanical fit are part of the electrical design.
- Ignoring operating temperature: Both hot and cold conditions can change battery behavior.
The capacity-only problem
A battery with twice the nominal capacity does not automatically provide twice the usable system performance. If the equipment requires high peak current and the selected cells are designed for low-rate discharge, the voltage may sag significantly under load.
The voltage-only problem
Matching nominal voltage is necessary but not sufficient. Two packs with the same voltage can have very different capacity, continuous current, peak current, chemistry, BMS, and mechanical dimensions.
The replacement-charger problem
A common mistake during battery replacement is keeping the original charger. Lead-acid, Ni-MH, and lithium batteries do not necessarily use the same charging method.
The charger should be matched to the replacement battery's voltage and chemistry.
The enclosure problem
Battery designers sometimes focus on cell arrangement and only later consider the enclosure. This can create difficult compromises around connector access, cooling, serviceability, and mechanical protection.
The thermal-afterthought problem
A pack that works well during a short test may heat substantially during continuous operation. Thermal behavior should therefore be tested under the real or representative duty cycle.
The documentation problem
Battery systems require clear technical information. The battery model, cell configuration, voltage, capacity, BMS limits, connector type, charger requirements, dimensions, and installation orientation should be documented consistently.
What Should a Professional Battery Specification Include?
A professional specification allows engineers, procurement teams, manufacturers, and equipment integrators to work from the same technical information.
| Specification Area | Information to Define | Why It Matters |
|---|---|---|
| Chemistry | LFP, NMC, LCO, NCA, or another defined chemistry | Determines voltage and operating characteristics |
| Cell format | 18650, 21700, 26650, pouch, prismatic, or other format | Affects mechanical and thermal design |
| Series configuration | Number of cells or groups in series | Defines voltage platform |
| Parallel configuration | Number of parallel cells or groups | Defines capacity and current capability |
| Nominal voltage | Pack voltage under specified conditions | Must match equipment architecture |
| Capacity | Nominal Ah rating and test conditions | Defines charge storage capability |
| Discharge current | Continuous and peak current limits | Ensures suitability for the real load |
| Charge current | Specified charging current range | Supports correct charging behavior |
| BMS | Voltage, current, temperature, balancing, communication | Defines protection and system interface |
| Dimensions | Length, width, height | Confirms physical installation compatibility |
| Connector | Power and signal connector type | Ensures electrical and mechanical compatibility |
| Environment | Operating and charging temperature, humidity, vibration | Matches the pack to the application |
| Transport | Applicable testing and shipping documentation | Supports compliant logistics |
Start with the equipment load profile
Before selecting cells, identify the equipment voltage, average current, maximum current, operating duration, standby periods, and expected duty cycle.
For motor-driven equipment, startup current should be measured or calculated rather than estimated from the motor's average consumption.
Define the voltage platform
Choose a nominal voltage that matches the equipment electronics, motor controller, inverter, and charger.
The series cell count should then be calculated from the selected chemistry and required voltage platform.
Define energy requirements
Estimate daily or per-cycle energy consumption using the actual duty cycle. Then consider conversion losses, usable depth of discharge, temperature effects, and other system limitations.
Define power requirements
Determine the highest expected current and how long it will last. This is especially important for motors, compressors, pumps, tools, and mobile machinery.
Define physical constraints
Provide the available battery compartment dimensions and mounting points. The specification should also state connector location, cable exit direction, service access, ventilation space, and mounting orientation.
Define thermal requirements
State the highest expected ambient temperature, lowest expected temperature, duty cycle, and available cooling conditions.
Define the BMS architecture
The BMS should match the number of cells in series, current requirement, charging voltage, temperature sensors, balancing method, and communication interface.
Define charging requirements
The exact charger output voltage, current, connector, and control method should be defined before the battery design is finalized.
Define quality and testing
Quality procedures can include cell screening, capacity testing, internal resistance checks, welding inspection, insulation tests, BMS functional testing, charge-discharge testing, dimensional inspection, and final pack verification.
- Define the equipment: Identify voltage, average load, peak load, duty cycle, and operating environment.
- Select chemistry: Compare energy, power, thermal behavior, cycle requirements, and application suitability.
- Calculate cell arrangement: Establish series and parallel configuration based on voltage and capacity requirements.
- Specify current capability: Define continuous and peak discharge requirements and the allowable charge current.
- Design the BMS: Match protection, balancing, sensing, and communication functions to the pack.
- Design thermal management: Create a clear heat path for cells and power electronics.
- Design the enclosure: Confirm dimensions, mounting, ventilation, protection, and service access.
- Define charging: Match charger voltage, current, connector, and control behavior to the pack.
- Verify safety: Review electrical isolation, short-circuit protection, temperature protection, and transport requirements.
- Complete validation: Test the finished pack under representative electrical, thermal, mechanical, and environmental conditions.
What should a buyer provide before requesting a customized configuration?
- Equipment voltage: Provide nominal and allowable operating voltage.
- Load information: Provide average, maximum, and startup or transient current where applicable.
- Operating duration: Define the expected run time per cycle and usage frequency.
- Battery compartment: Provide length, width, height, mounting points, and available cooling space.
- Connector requirements: Provide power connector and communication interface requirements.
- Charging system: Define charger voltage, current, connector, and charging method.
- Environment: State expected temperature, humidity, vibration, dust, and outdoor exposure.
- Control interface: Define whether the equipment requires CAN, RS485, UART, Bluetooth, or another communication interface.
A specification built this way provides a much stronger foundation for product matching. It also reduces the chance of discovering electrical or mechanical incompatibilities after manufacturing has already started.
Frequently Asked Questions
What is the main advantage of a rechargeable lithium battery?
Rechargeable lithium batteries can combine relatively high specific energy with flexible voltage and capacity configurations. They are used in many portable, industrial, mobility, and energy-storage applications.
What is the difference between voltage and capacity?
Voltage describes the electrical potential of the battery, while capacity describes how much electrical charge the battery can deliver under specified conditions. Voltage is measured in volts and capacity is normally measured in ampere-hours.
How is battery energy estimated?
A simplified estimate is energy in watt-hours equal to nominal voltage multiplied by capacity in ampere-hours. Actual usable energy depends on discharge conditions, temperature, battery-management limits, conversion losses, and the specified test method.
What does 10S3P mean?
10S3P indicates ten series groups and three parallel cells or groups in each series position. The final voltage and capacity depend on the voltage and capacity of the individual cell.
Why is a BMS needed?
A BMS can monitor voltage, current, and temperature, protect the battery against abnormal operating conditions, and manage cell balancing in multi-cell packs. Its exact functions depend on the battery design.
Can every lithium chemistry use the same charger?
No. Charging voltage and charging behavior depend on the chemistry and cell configuration. The charger should be matched to the exact battery voltage platform and chemistry.
What is C-rate?
C-rate expresses current relative to battery capacity. For example, a 1C discharge for a 20 Ah battery corresponds to 20 A, subject to the battery's specified operating conditions.
Why can a battery with high capacity still be unsuitable for a power tool?
Capacity describes stored charge, but a power tool may require high instantaneous current. The cells, interconnections, BMS, wiring, and connectors must all support the required peak and continuous discharge levels.
What is the difference between LFP and NMC chemistry?
LFP is known for strong thermal stability and long cycle characteristics, while NMC is commonly selected for higher energy density and balanced power performance. The correct choice depends on the equipment requirements and operating environment.
What cell formats are commonly used?
Common formats include cylindrical, pouch, and prismatic cells. Cylindrical formats include examples such as 18650, 21700, and 26650. The format affects mechanical layout, thermal management, assembly, and enclosure design.
Why is thermal management important?
Current flow creates heat inside cells and electrical components. Excessive temperature can affect performance, charging behavior, aging, and safety, so high-power battery packs require an appropriate thermal path.
Can lithium batteries operate in cold weather?
They can operate within the temperature range specified for the cell, but cold temperatures can reduce available power and increase internal resistance. Charging at low temperature may also require restrictions depending on the chemistry and cell design.
Can an old lead-acid charger be used with a lithium battery?
Not automatically. Lead-acid and lithium batteries use different charging behavior and voltage requirements. The charger should be confirmed as compatible with the replacement battery chemistry and pack voltage before use.
What safety protections should a battery pack have?
Depending on the design, protections can include overcharge, over-discharge, overcurrent, short-circuit, over-temperature, cell imbalance, and appropriate electrical isolation. Fuses and other protection components may also be required.
What documents may be needed for international battery transportation?
Depending on the battery type, transport mode, and jurisdiction, documentation can include UN38.3-related test information, safety data information, transport assessments, packaging specifications, labels, and other required shipping documents.
How long can a lithium battery last?
Service life varies with chemistry, depth of discharge, charge and discharge rates, temperature, storage conditions, cell quality, and pack-management strategy. Cycle-life figures should always be interpreted together with the test conditions under which they were measured.
What causes battery capacity to decline over time?
Capacity can gradually decline because of electrochemical aging, high operating temperature, high current, deep cycling, prolonged high state of charge, and other stress factors. The exact aging behavior depends on the cell chemistry and operating conditions.
Why do cells need to be balanced?
Cells connected in series can develop different states of charge over time. Balancing helps reduce those differences so that no individual cell reaches a voltage limit significantly earlier than the others.
Can a battery pack be customized for a specific machine?
Yes. A customized pack can be designed around voltage, capacity, cell format, series-parallel configuration, BMS, communication, connectors, enclosure dimensions, mounting, and environmental requirements, provided the resulting design is technically validated.
What information should be provided for a customized battery project?
Useful information includes equipment voltage, average and peak current, duty cycle, operating duration, available battery space, mounting method, connector requirements, communication interface, charging method, ambient temperature, and expected environmental exposure.
Why should the battery and charger be treated as one system?
The charger determines how the battery is electrically charged, while the battery's chemistry and BMS determine which charging conditions are acceptable. Mismatching these components can produce poor performance or unsafe conditions.
What should be checked before replacing a battery with a different lithium chemistry?
Check nominal voltage, maximum charging voltage, charge current, discharge current, BMS architecture, charger compatibility, physical dimensions, connector arrangement, thermal conditions, and the equipment controller's allowable voltage range.
How Can Better Battery Engineering Improve System Performance?
Battery performance is ultimately the result of many interconnected decisions. Cell chemistry determines the basic electrochemical behavior, but the final battery depends just as much on the series-parallel configuration, BMS, electrical connections, charger, thermal design, enclosure, and equipment controller.
This is why selecting a battery by a single number is rarely sufficient. Voltage must match the equipment. Capacity must correspond to the required operating duration. Continuous and peak current must match the load profile. Charging parameters must match the selected chemistry. Thermal design must account for the real duty cycle. The BMS must be compatible with the exact cell configuration.
The physical structure is equally important. Cylindrical cells, pouch cells, and prismatic cells offer different packaging possibilities. The selected format must fit the battery compartment while leaving enough room for insulation, connections, cooling, protection electronics, and service access.
Application has a major influence on the final design. A small electronic device may prioritize compactness and energy density. A power tool may prioritize high discharge capability. An electric scooter may need a balance between energy and motor peak current. An industrial robot may emphasize repeated duty cycles and communication. A stationary storage system may emphasize cycle performance, thermal stability, and monitoring.
Safety must remain part of every design stage. Protection against overcharge, over-discharge, overcurrent, short circuit, excessive temperature, and cell imbalance should be integrated into the electrical architecture rather than treated as an afterthought.
Transportation and documentation are also part of professional battery engineering. International shipments can require defined testing, packaging, labeling, and transport documentation, while project procurement may require clear specifications, drawings, and inspection records.
For equipment manufacturers and system integrators, the most useful approach is to start with the real operating conditions and work backward toward the battery configuration. This creates a clearer relationship between the equipment load, battery chemistry, cell arrangement, BMS, charger, thermal system, enclosure, and expected operating behavior.
A properly engineered Lithium Ion Battery is therefore more than a group of rechargeable cells. It is a coordinated power system designed around a specific electrical load, environmental condition, mechanical structure, charging strategy, and protection architecture.
Need a Lithium Battery Configuration for Your Equipment?
Vcell Power supports application-specific rechargeable battery solutions covering voltage platforms, cylindrical and other cell formats, series-parallel configurations, BMS protection, connectors, enclosures, and customized pack requirements. For technical specifications and project discussions, contact us.
