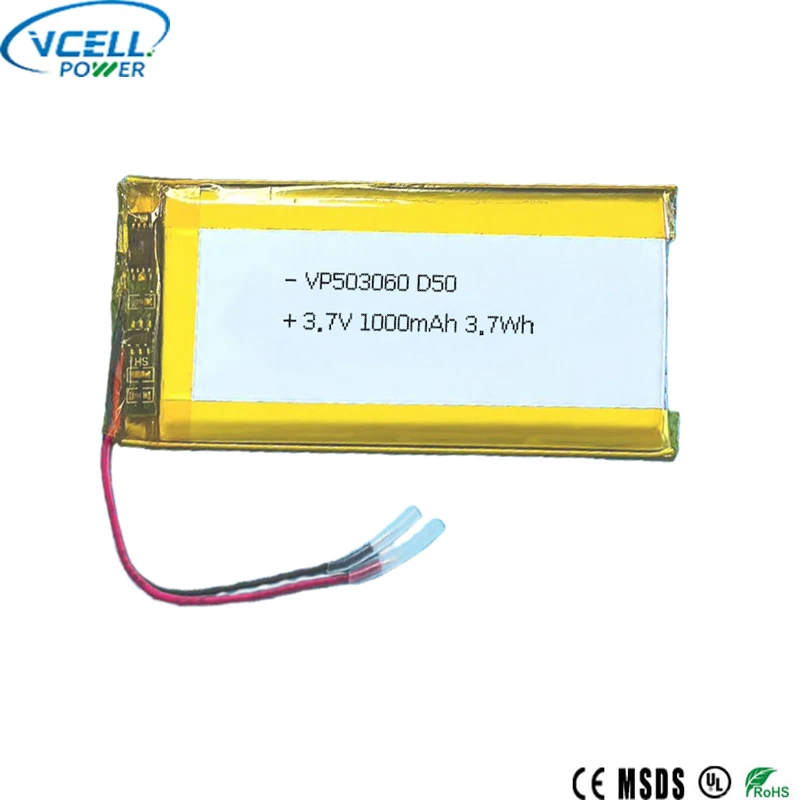

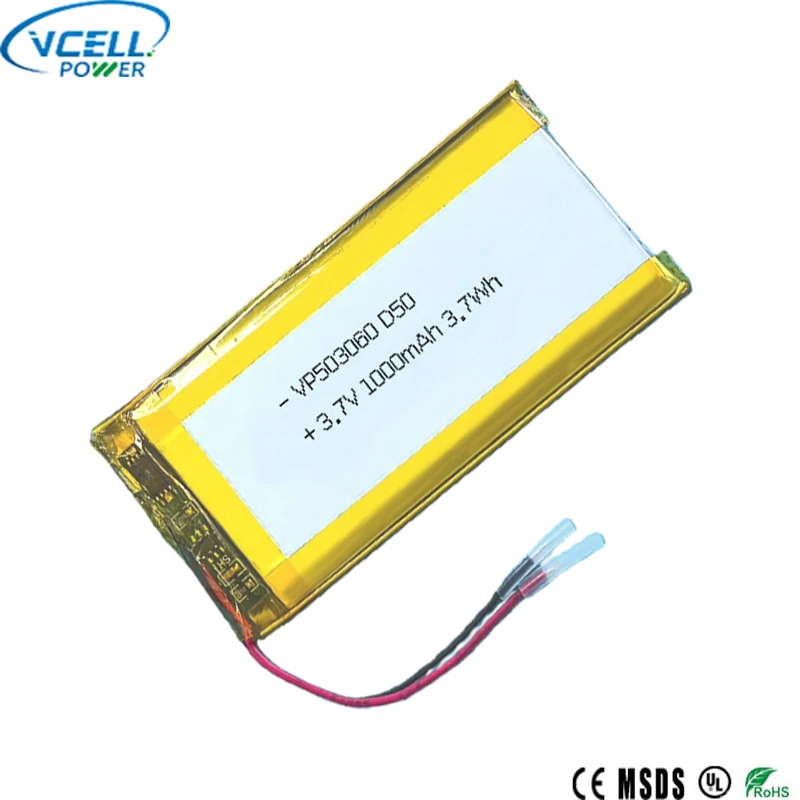

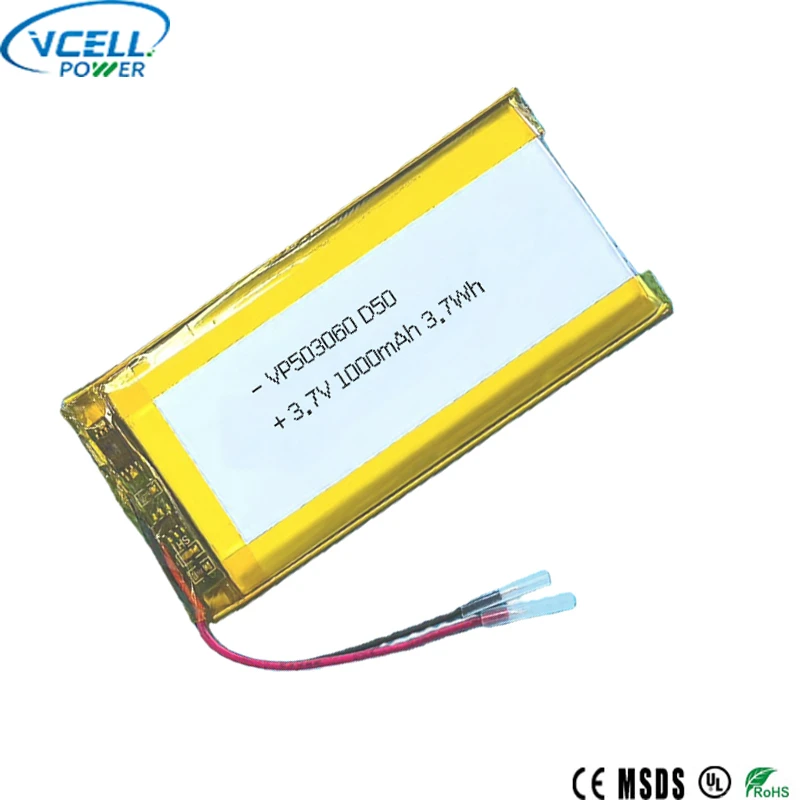

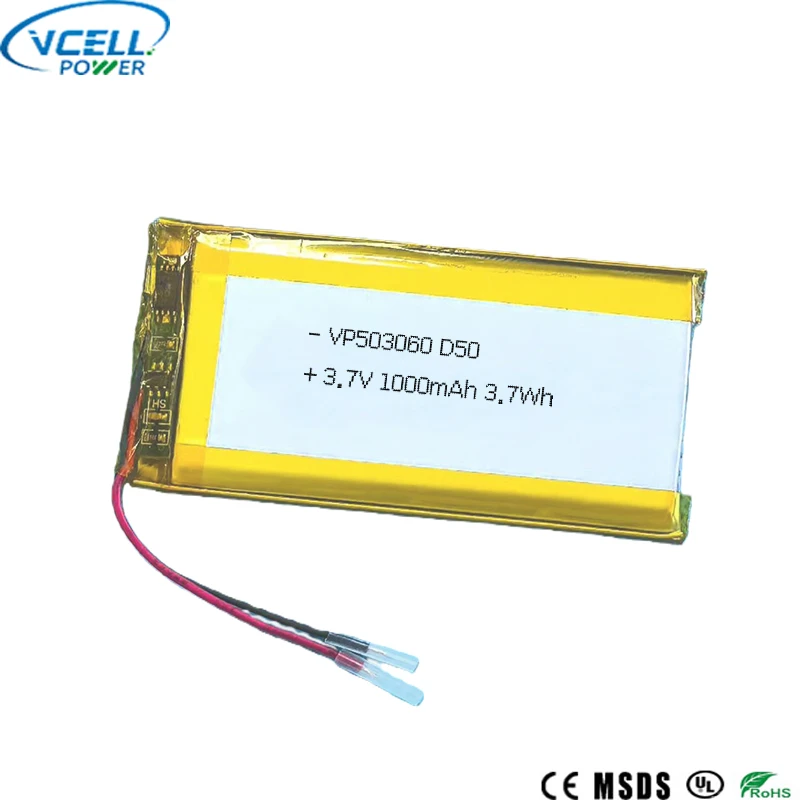

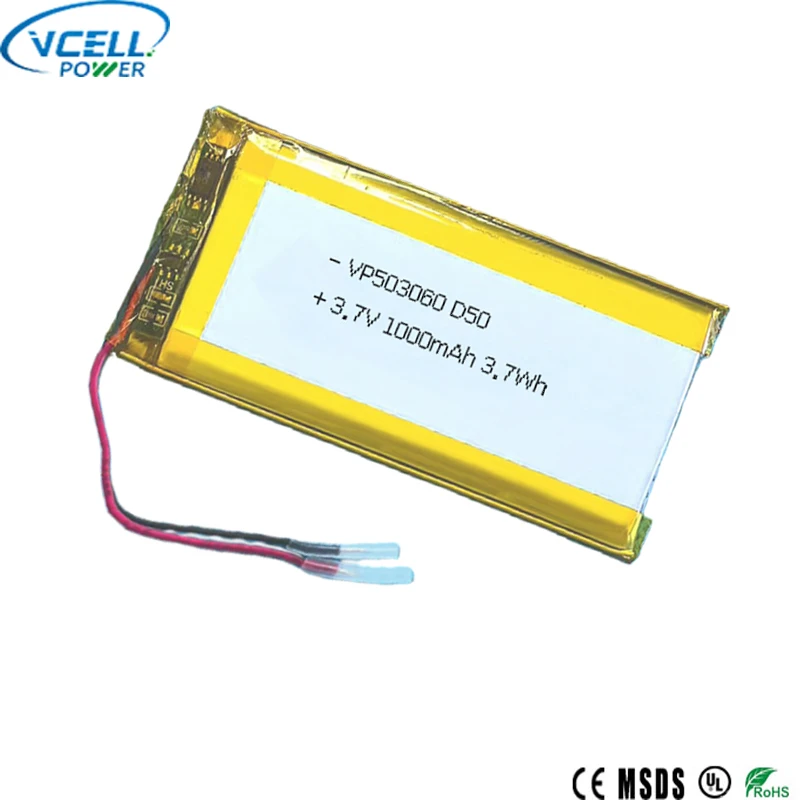

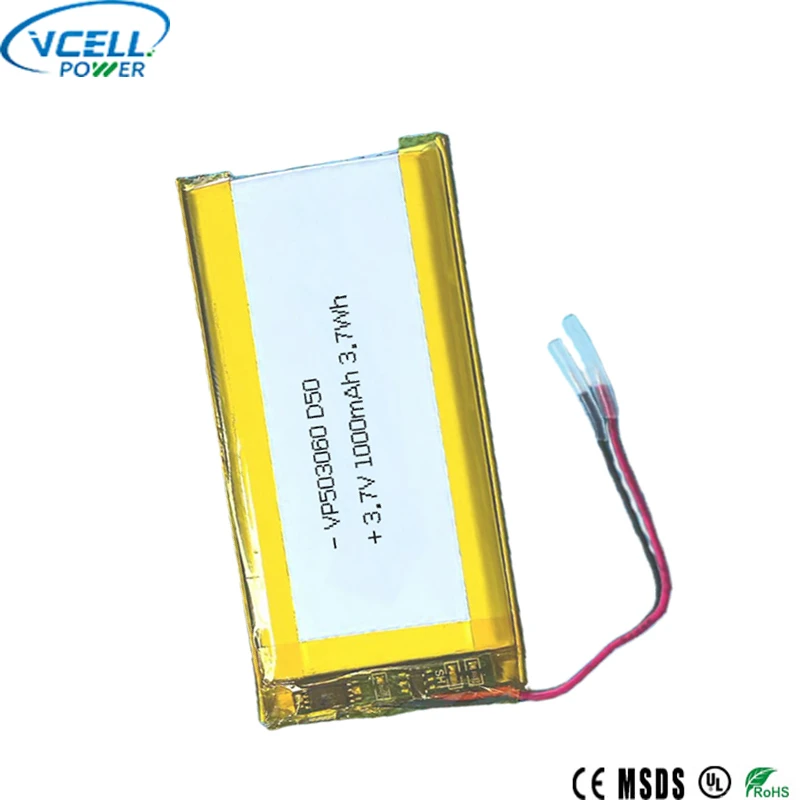

503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery

Vcell Power 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery uses aluminum-plastic composite film packaging, making it lighter and more portable compared to steel-cased batteries like the 18650. Its ultra-thin 5.2mm design allows it to easily fit into compact spaces such as wireless controller handles and small development boards, meeting the design needs of lightweight and miniaturized devices. Providing 1000mAh of power in such a small volume, it can power Bluetooth headsets for tens of hours or provide long-lasting power for development boards during debugging. With a self-discharge rate of less than 1.5% per month, polymer batteries lose very little power when not in use compared to nickel-metal hydride batteries, making them suitable as a backup power source for radios or emergency equipment. It holds multiple international certifications, including CE and RoHS, etc., meeting global market access standards.

Product Parameter

Core Features

Vcell Power highlights six key features of this battery:

Ultra-Thin & Lightweight -- Only 5.2mm thick and 19.0g, allowing easy layout within compact devices. The aluminum-plastic film pouch is thinner and lighter than 18650 steel-case cells, improving portability.

1000mAh Capacity -- The 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery delivers 1000mAh in a 5.2mm thin profile, supporting long runtime for Bluetooth headphones or extended power supply for development board debugging.

700+ Cycle Life -- Tested cycle life exceeds 700 cycles, with a service life of over 5 years.

Low Self-Discharge -- Monthly self-discharge rate below 1.5%. Even after months of non-use, it retains sufficient reserve power, making it suitable for standby applications such as radios and emergency devices.

Multi-Protection -- The soft pouch design reduces leakage risks compared to steel-case cells. The built-in PCM provides overcharge, over-discharge, overcurrent, and short circuit protection. With a discharge temperature range of -20°C to 60°C, it remains stable under various conditions.

International Compliance -- Meets UN38.3, UL, CE, and ROHS certification requirements, helping customers comply with major global environmental and safety standards.

Applications Scenarios

With its 5.2mm thin design and 1000mAh capacity, the 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery is used in:

Wireless audio devices -- Built-in power for Bluetooth headphones, noise-canceling earbuds, and wireless microphones, supporting long runtime.

Wireless controllers -- Fits into game controllers, remote controls, and drone transmitter handles; 5.2mm thickness and 62.5mm length suit handle grip areas.

Portable receivers & development boards -- Power for wireless receivers, sensor modules, MCU boards, Arduino/Raspberry Pi accessories; 1000mAh meets daily debugging needs.

Radios & emergency equipment -- Low self-discharge makes it ideal for standby power in radios, emergency lights, and backup signal devices.

Other portable electronics -- POS terminals, electronic dictionaries, handheld test instruments, and other space-constrained devices.

Customization Support

As a manufacturer with over 20 years of lithium battery experience, Vcell Power has full in-house capabilities from cell formulation to final assembly. Since starting Li-ion R&D in 2003 and launching the first 18650 cylindrical cell in 2004, our polymer battery product line covers many models. For the 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery, we offer flexible options:

Lead wire solutions -- UL1571, UL1007, or other specifications; lengths from 30mm to 100mm.

Connector types -- PH, XH, JST, or custom drawings.

PCM parameters -- Adjust overcharge/over-discharge thresholds and current limits for different power requirements.

Surface printing -- Custom insulation sticker color and logo printing.

Sample delivery time is arranged based on order, mass production lead time approx. 25-30 days.

Why Choose Vcell Power

Among numerous lithium battery suppliers, Vcell Power is a trusted partner for B2B customers based on:

Genuine factory direct -- Founded in 2001, with over 20 years of Li-ion R&D and production. All processes from material mixing to testing are in-house, ensuring traceable quality for every batch of the 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery.

Full technology coverage -- Product lines include Li-ion, polymer, LiFePO4, sodium-ion, and Ni-MH batteries, offering OEM customers one-stop power solutions.

International certifications -- Meets UN38.3, UL, CE, ROHS, and other standards, with complete MSDS and air/sea transport certificates.

Factory direct pricing -- No middlemen, competitive quotes for the same quality.

Fast response & technical support -- Standard models in stock, quick samples available. Professional engineering team provides pre-sales consulting and after-sales support.

Product Summary

The product with its 5.2mm ultra-thin profile, 1000mAh capacity, 700+ cycle life, and below 1.5% monthly self-discharge, provides a thin rechargeable power solution for global wireless audio, smart control, portable development boards, and emergency equipment markets. Backed by over 20 years of battery manufacturing experience and ISO9001 quality management, Vcell Power delivers competitively priced rechargeable energy solutions with controlled processes and selected materials. Choose Vcell Power for a win-win future.

FAQ

Q: Can the product discharge at -20°C?

A: Yes. The discharge temperature range is -20°C to 60°C, suitable for outdoor use in cold climates. Charging temperature should be kept between 0°C and 45°C.

Q: What are the main advantages over 18650 steel-case cells?

A: Size, weight, and shape flexibility. The 503060 is only 5.2mm thick and 19.0g, much thinner than the 18mm diameter of 18650. The soft pouch can be custom sized, while 18650 has fixed dimensions.

Q: What OEM customizations are available for this 1000mAh polymer battery?

A: Custom lead length (30-100mm), connector types (PH/XH/JST, etc.), PCM parameters, and surface printing. Sample delivery is arranged based on orders; mass production lead time approx. 25-30 days.

Q: Does this battery meet dangerous goods transport regulations for international shipping?

A: Yes.The 503060 3.7V 1000mAh 3.7Wh Lithium Polymer Battery is UN38.3 certified and compliant with IATA regulations. We provide MSDS, UN38.3 test report, and air/sea transport certificates to facilitate international shipping and export arrangements.

Q: How is the self-discharge rate for long-term storage?

A: Monthly self-discharge is below 1.5%. At room temperature (20±5°C) and humidity below 65%, residual capacity remains good. FIFO inventory management is recommended, avoiding static storage exceeding 6 months.
