12.8V 6400mAh Rechargeable LiFePO4 Battery Pack
12.8V 6400mAh rechargeable LiFePO4 battery pack, expertly crafted by Vcell Power, a renowned Chinese lithium battery manufacturer. With over two decades of deep expertise in LiFePO4 technology, we use advanced R&D and rigorous manufacturing to deliver reliable, high-quality performance. Partner with Vcell Power for a collaboration defined by high standards and long-term reliability.
Model:VP-LF12-6400
Send Inquiry
Product Description
Vcell Power 12.8V 6400mAh rechargeable LiFePO4 battery pack adopts 4S2P high-quality IFR26650 lithium iron phosphate cells. Outer dimensions measure 119mm × 59mm × 70mm. Designed as a compact drop-in replacement for small 12V lead-acid batteries, the built-in smart BMS provides full protection to secure a stable power supply for low & medium power DC devices.
Key Specifications of 12.8V 6400mAh Rechargeable LiFePO4 Battery Pack
| Battery Type | Lithium Iron Phosphate Battery |
| Brand | VCELL/OEM |
| Model | VP-LF12-6400 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6400mAh |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Standard Charge | 0.2C |
| Max charge current | 1.0C |
| Standard discharge current | 0.2C |
| Maximum Continuous Discharge Current | 3.0C |
| Peak Discharge Current | 5.0C(<3S) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20℃~+65℃ |
| Size(L*W*H) | 119*59*69mm Max Or Customized |
| Weight | Approx 690g |
| Cycle life | > 2500 cycles at 100% DOD,1C charge/discharge |
| Life Time | ＞ 10 Years |
| Wire/Connector | TBD |

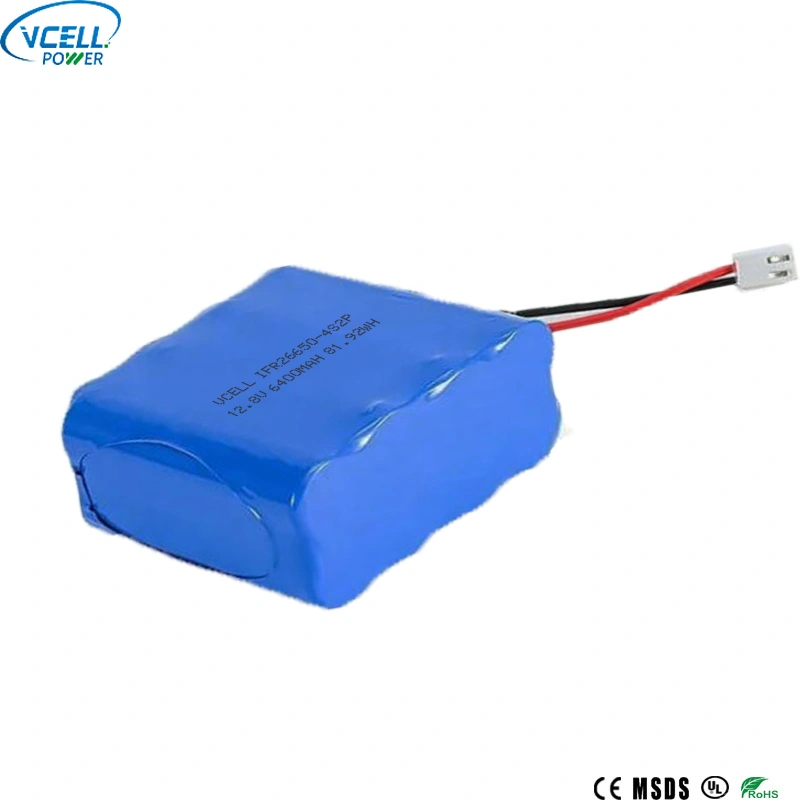

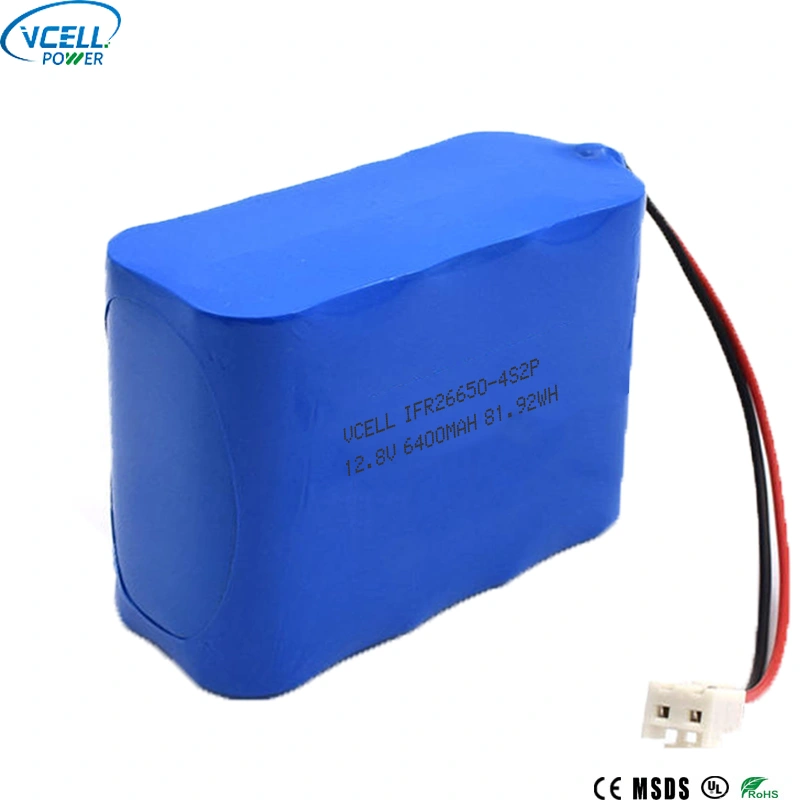

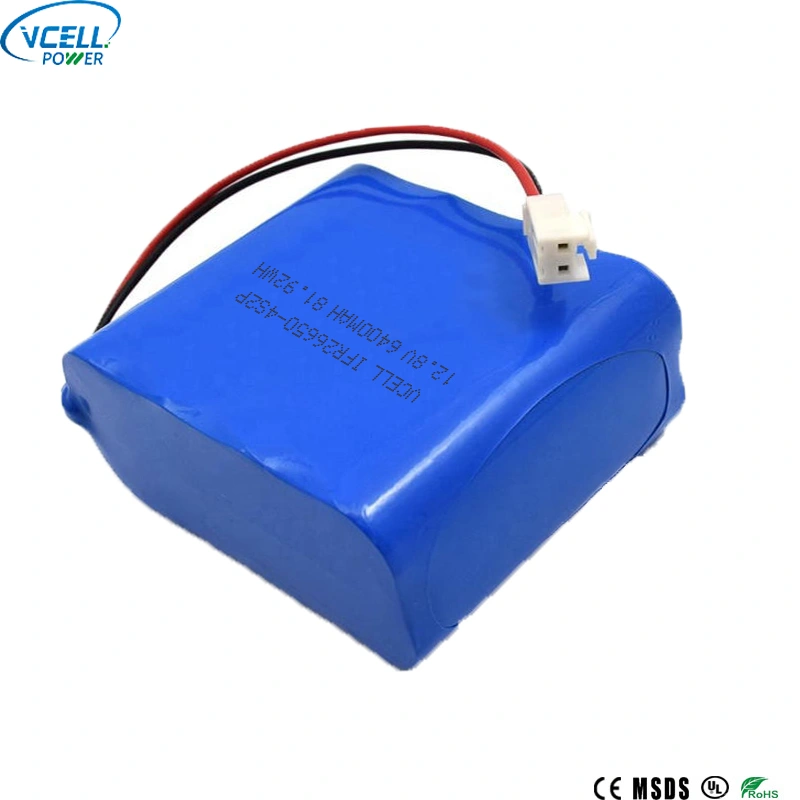

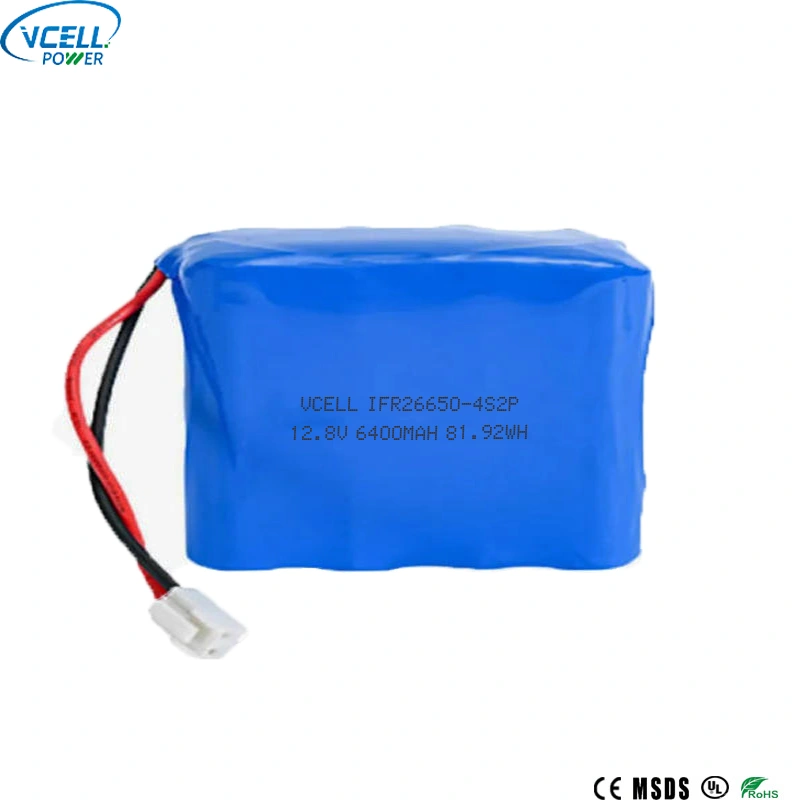

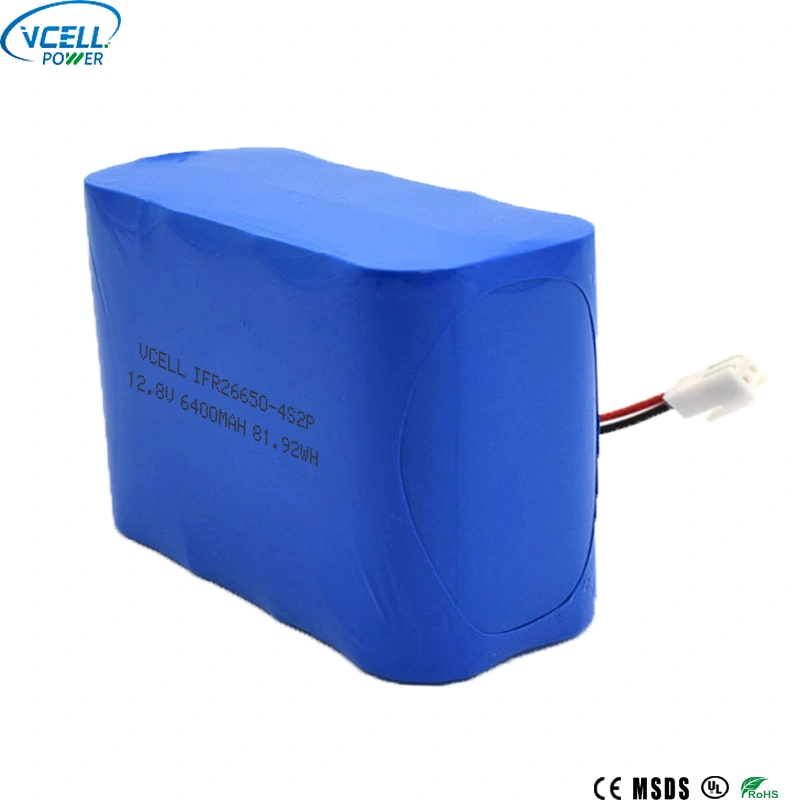

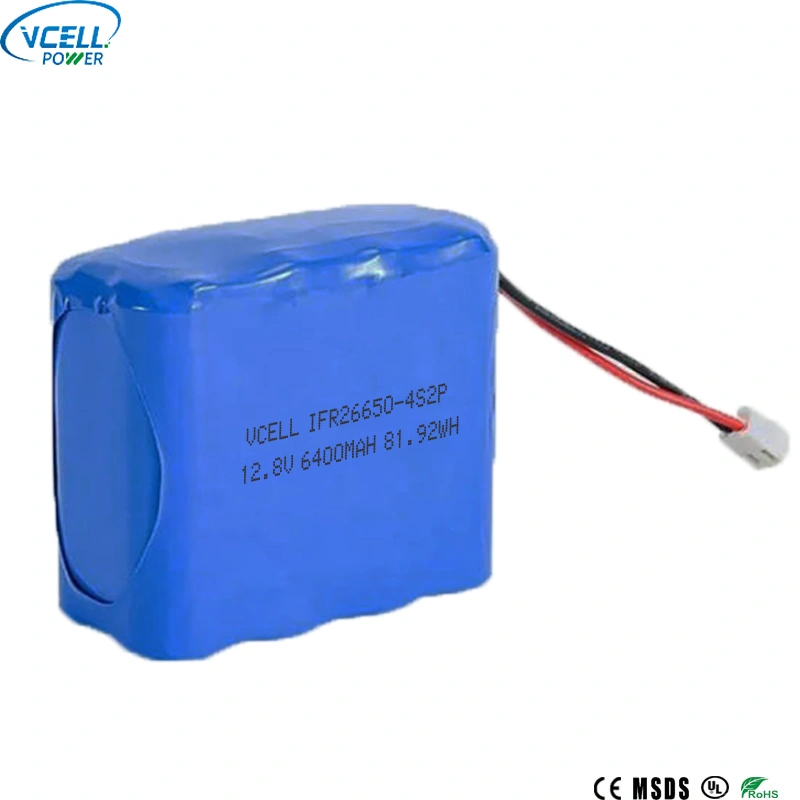

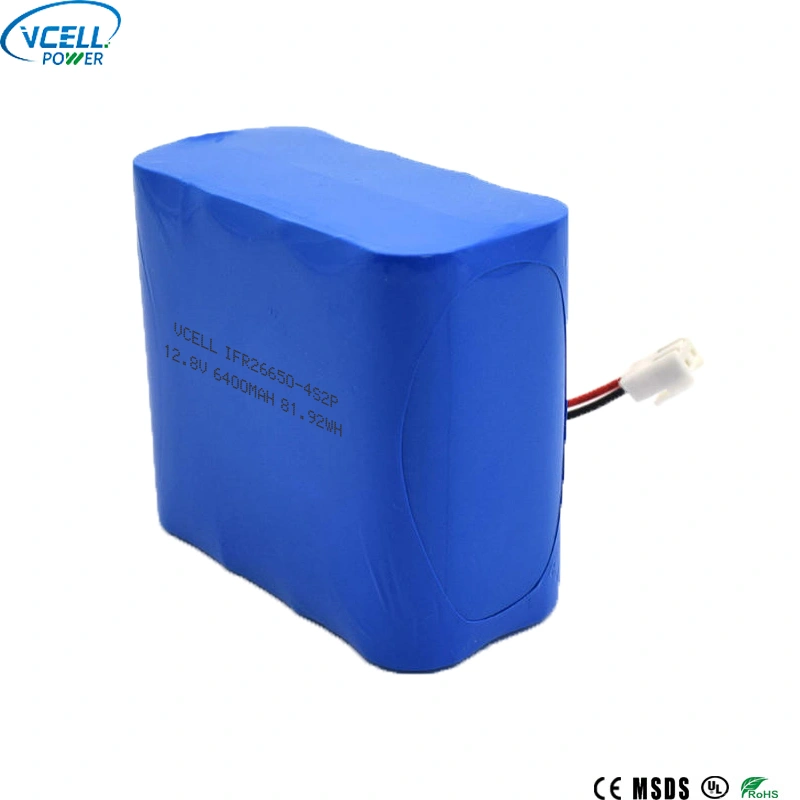

Detailed images of 12.8V 6400mAh Rechargeable LiFePO4 Battery Pack
Core Advantages of 12.8V 6400mAh Rechargeable LiFePO4 Battery Pack
1. More than 2500 deep cycles, daily use for 5+ years, no capacity degradation, built to last.
2. 65% Lighter than equivalent lead-acid, easier to handle and install.
3. Supports -20°C discharge, reliable startup even in freezing winters.

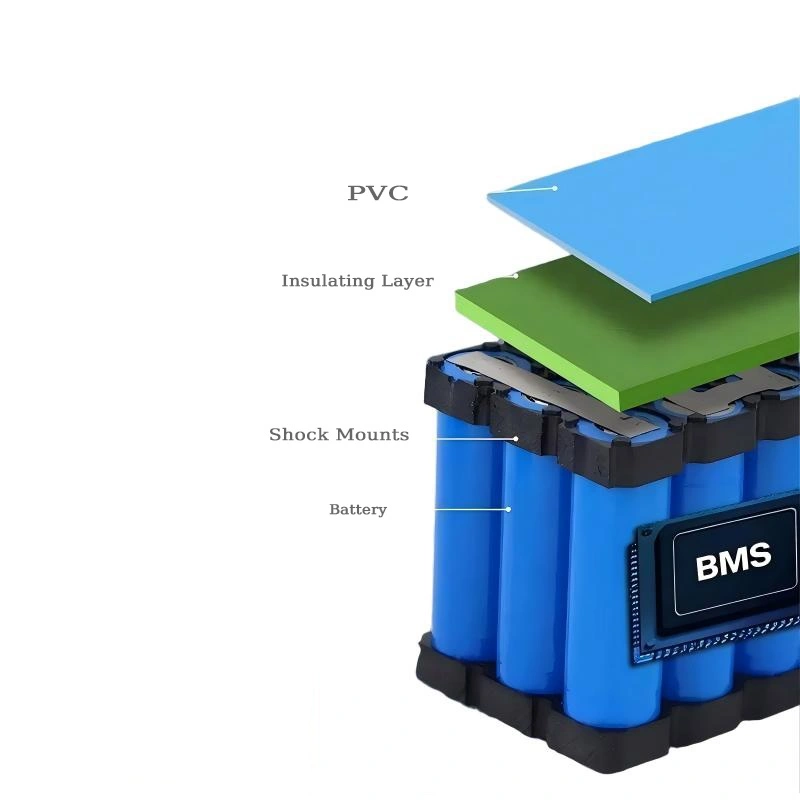

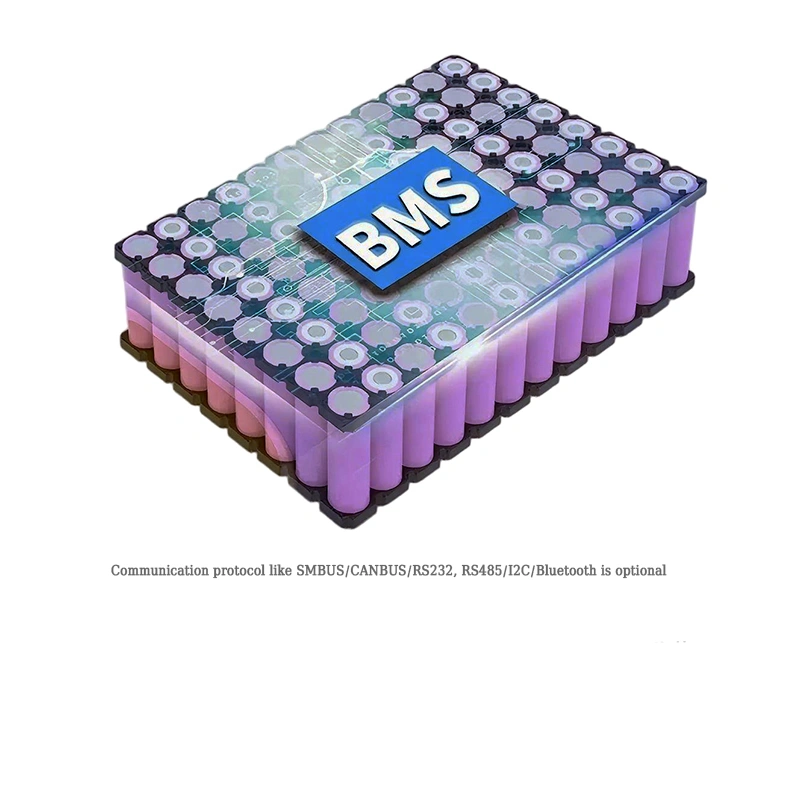

4. Integrated Smart BMS Protection protects against overcharging, over-discharging, over current, short circuits, and cell imbalance.
5. Free from toxic heavy metals (lead, cadmium, mercury), eco-friendly.
6. Multiple optional terminals: bare wire, DC plug, connectors; OEM/ODM customization supported.
Main Applications for 12.8V 6400mAh Rechargeable LiFePO4 Battery Pack
1. Security And Alarm Systems: Outdoor 12V CCTV cameras, infrared detectors, access control systems, and emergency lighting.
2. Solar Energy Storage: Small solar street lights, lawn lamps, solar pest-control devices, and off-grid monitoring stations.
3. UPS And Telecom Backup: Standby power supplies for routers, switches, servers, and portable testing equipment.
4. Robotics And Portable Tools: AGVs, service robots, electric sprayers, portable medical devices, and outdoor audio systems.
OEM/ODM Customization Available:
Vcell Power can modify capacity, voltage, terminal types, and BMS parameters according to your specific device requirements. Send us your drawings or specs for a tailored solution .
